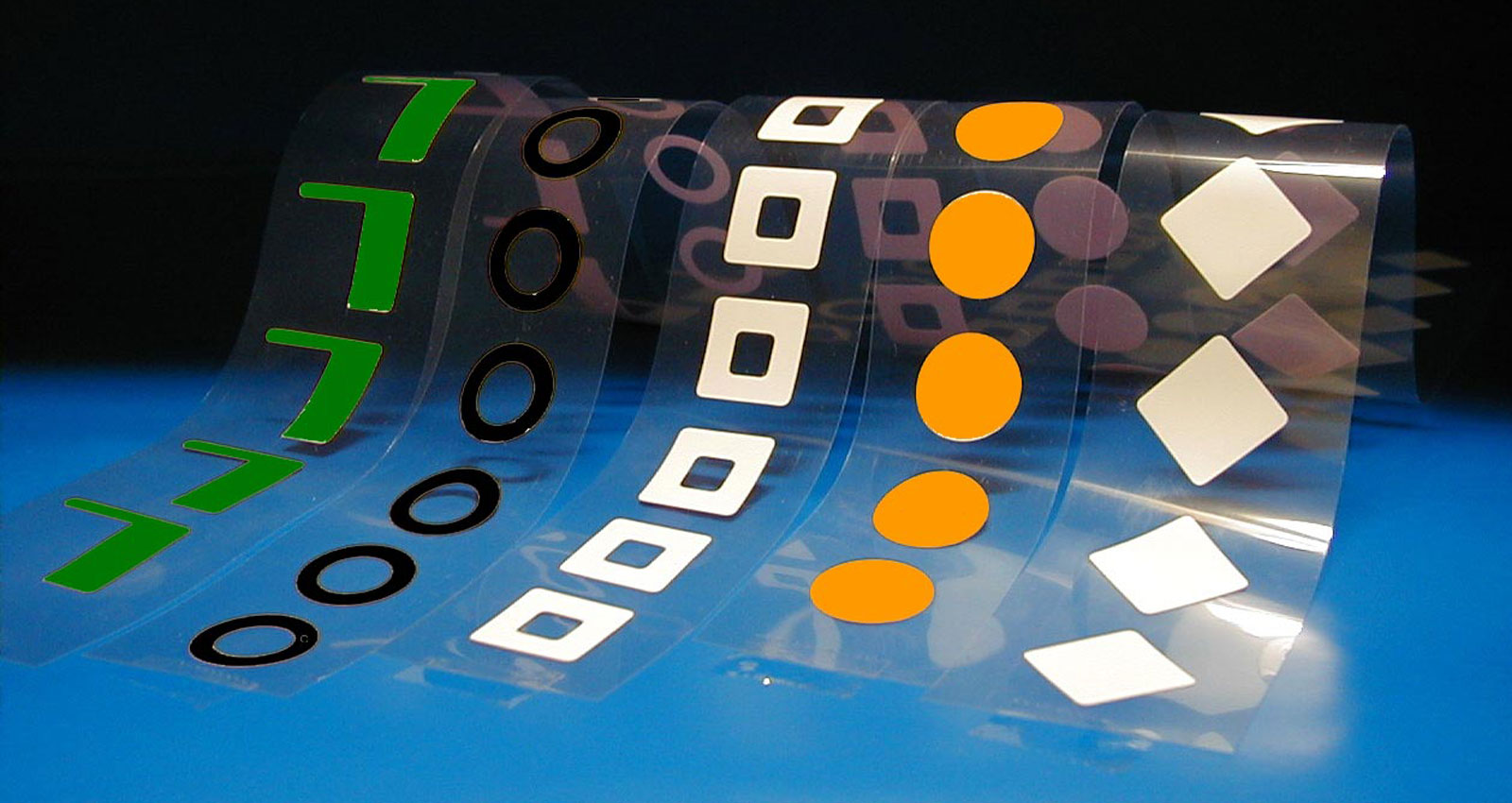

CERASHEET
Unfired Ceramic Labels with Adhesive Backing
Material
Unfired ceramic
Thickness
10 μm to several hundred μm
Shape
Custom shapes available
Mounting
Manual application or optional automatic application using a dedicated labeling system
Firing Temperature
400°C to 1200°C
Compatible Substrates for Firing Bonding
Glass, ceramics, and certain metals
Optional Functions for CERASHEET
Light-shielding properties, color options, electrical insulation, and other functional features
・CERASHEET is a ceramic green sheet with an adhesive backing.
・By adjusting the ceramic composition, a variety of functional properties can be added to the ceramic film.
・Ceramic films with highly uniform thickness can be achieved, and films tailored to specific applications are also available upon request.
・Compared with conventional forming methods such as coating or printing, significantly higher dimensional accuracy can be achieved.
